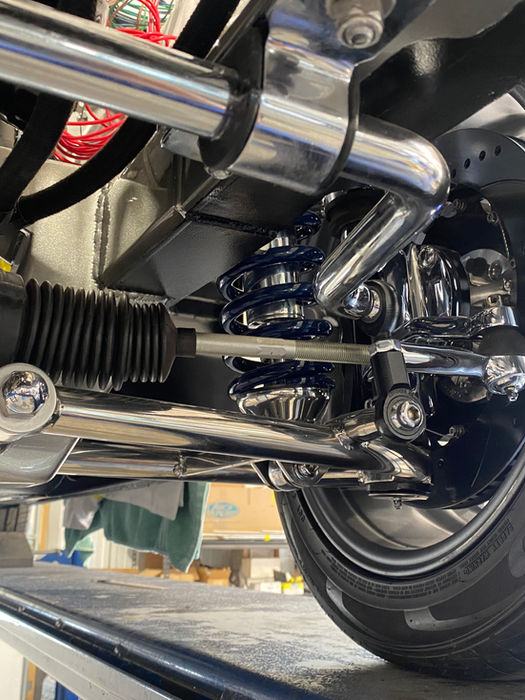

Chassis and suspension under Eleanor is a Stage 3 IFS from Total Cost Involved  ( TCI ).  It is equipped with welded in front crossmember, single adjustable coil over shocks, 2” drop spindles, polished stainless upper and lower control arms, 14” Wilwood brakes with competition silver calipers and black wilwood logo.  ( calipers are same front and rear ). Power rack and pinion steering.

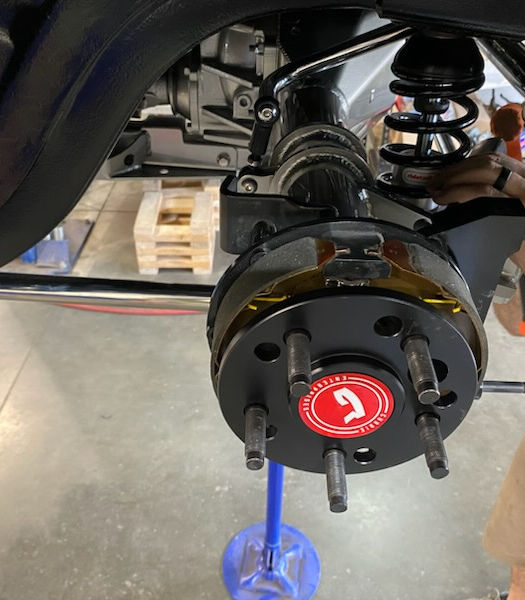

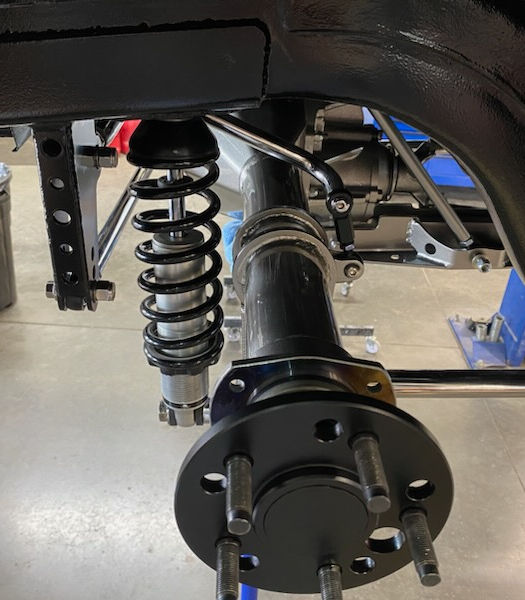

Rear is a torque arm suspension set up with polished stainless lower control arms and panhard bar.  Currie Nodular 9” Ford rear differential, Tru Trac posi, 3.70 gear ratio and 35 spline axles. Also fitted with 14” Wilwoods and single adjustable coil over shocks.

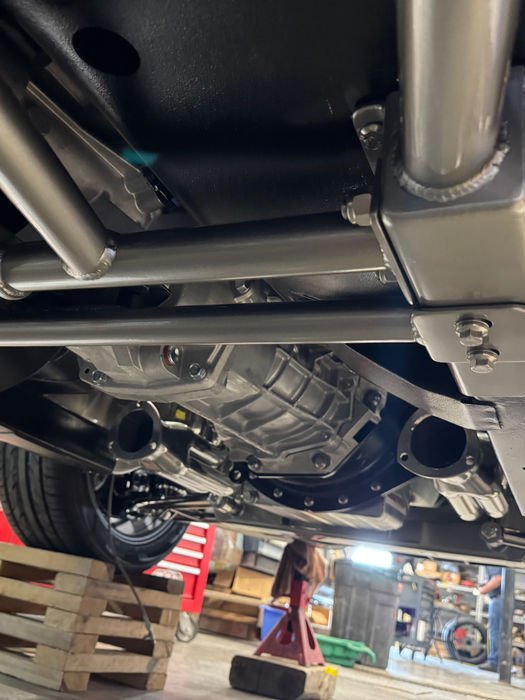

Front and rear of car are connected with  X-brace style subframe rails, which also support front crossmember for torque arm and includes a driveshaft hoop for safety. Rear lift arms are fastened to top of rear diff housing and torque arm.
